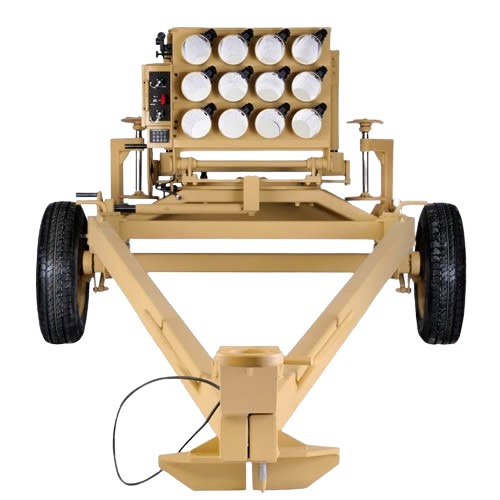

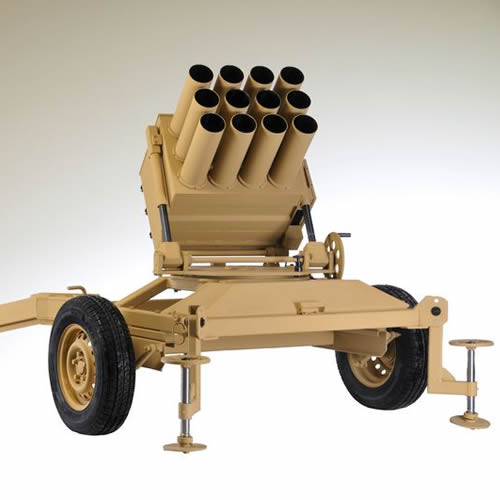

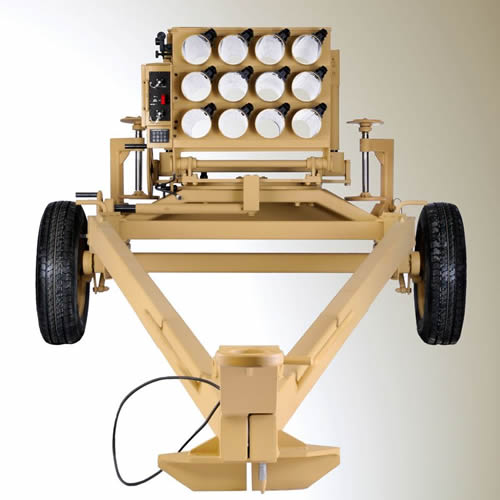

Multiple launch rocket system
RAK-SA-12 107mm
Unmatched Firepower for Tactical Operations
The RAK-SA-12 107 mm Multiple Launch Rocket System is designed for rapid and powerful strikes against large-area targets. With its extended range and high-impact capabilities, it provides effective fire support in diverse combat scenarios, ensuring mission success in any environment.
Devastating Impact on Strategic Targets
The RAK-SA-12 107 mm is engineered to eliminate enemy forces and assets in both open and fortified positions. It effectively neutralizes infantry, artillery in combat or movement, command centers, communication hubs, and observation posts. Additionally, it disrupts enemy landings, transport routes, harbors, and air bases.
Reliable Performance in Any Condition
With its lightweight design, long-range capability, and destructive power, the RAK-SA-12 107 mm adapts to various terrains and extreme weather conditions. It operates efficiently in temperatures ranging from -30°C to +50°C, ensuring consistent performance in all mission environments.
Rapid Deployment and Superior Mobility
The system is operated by a five-member crew under the command of a group leader, with a transition time of just 90 seconds from transport to firing mode and one minute to return. Designed for high mobility, it can be transported by truck, rail, sea, or air, and towed at speeds of up to 80 km/h on roads, ensuring quick repositioning for maximum battlefield effectiveness.
Specifications
Calibre
107 mm
Maximum range with rocket 107 mm M63
8400 m
Maximum range with extended range rocket
11000 m

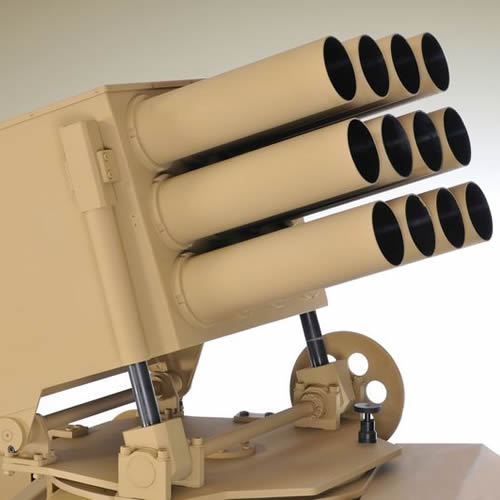

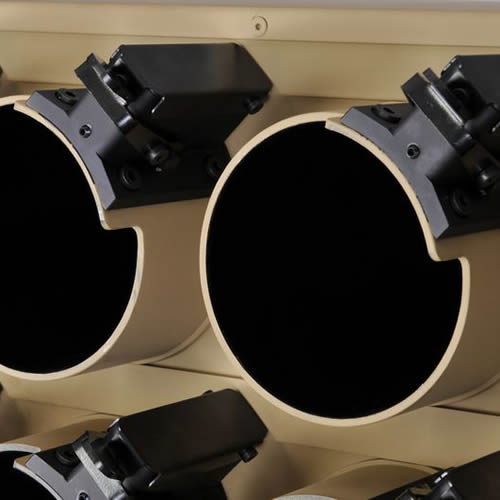

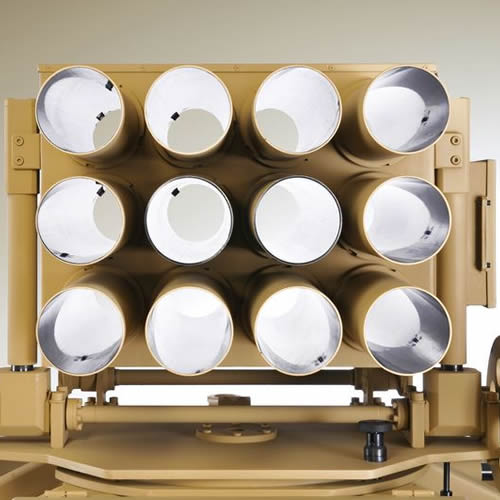

Number of tubes
12
Tube length
900 mm
Horizontal field of action
±15°
Vertical field of action
-1° to 46°
Fire modes
– burst fire: 12 rockets in 9.6s
– single rocket fire: 1 rocket
Remote controller cable length
18m
Battery
12V/6Ah
Battery charging voltage
– DC external source 12 – 24 V
– AC external source – public electric grid – 110/220V
Charging current
up to 1A
Impulse current
up to 2,1A
Impulse length
55 ms
Launcher weight in transport
570 kg
Launcher weight in firing position
– unloaded weapon – 555kg
– loaded weapon – 771 kg
Spare parts and accessories box weight
20 kg
Towing eye force
450 N
Launcher length in transport configuration (trails closed)
3700 mm

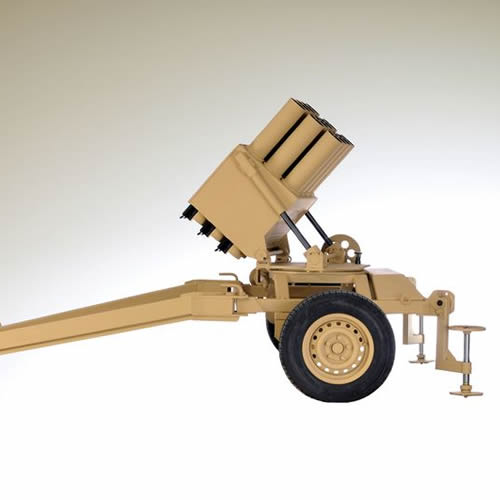

Launcher length in firing configuration (trails extended)
3720 mm
Clearance, in transport configuration
170 mm
Track width
1550 mm
Launcher width in transport configuration
1710 mm
Width in combat configuration (trails extended)
2820 mm
Height of empty launcher
1260 mm
Height in combat configuration (46° elevation)
1620 mm
Wheels dimensions
165R13
Time to load the launcher (rockets prepared in advance, equipped with fuses and armed)
up to 1 min 20 sec
Time to convert launcher from transport configuration to the firing configuration (including launcher loading)
up to 3 min 30 sec
Time to convert launcher from transport configuration to the firing configuration (rockets already loaded)
up to 1 min 30 sec
Time to convert launcher from firing configuration to the transport configuration (launcher loaded)
up to 1 min
Angular division
64-00

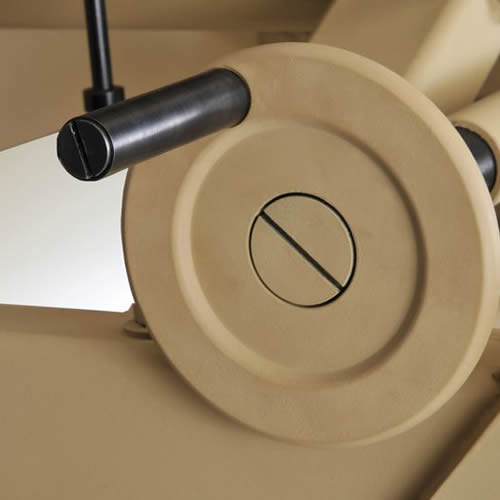

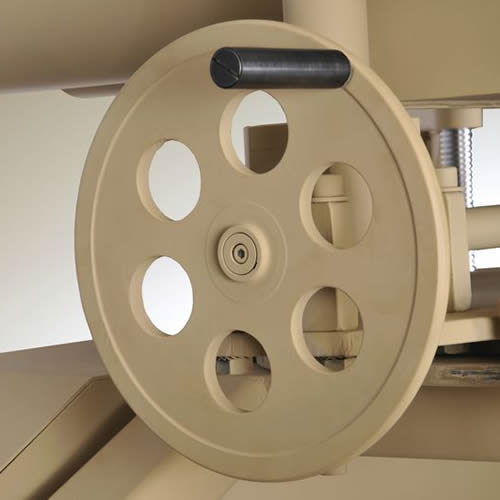

Traversing and elevation mechanism
mechanical

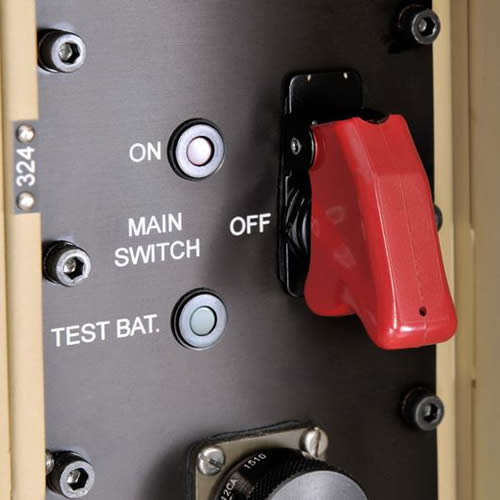

Firing control unit electricity usage
– fire control unit switched on: up to 80mA
– button ARM pressed: up to 190mA
– impulse usage with ARMED pressed: up to 2,4mA
Operating temperature range
-30° to 50°C
